Machine Specifications
- Functions: Woven Material
- Needle System: DPx5 Size -12
- Side Cutter Function: 1/4″ ~ 3/4″
- Parallel Interspace: 0.2mm to 2.5mm
- Automatic Thread Trimmer: Yes
- Automatic Presser Foot Lifting: Yes
- Clearance Under the Presser Foot: 12mm

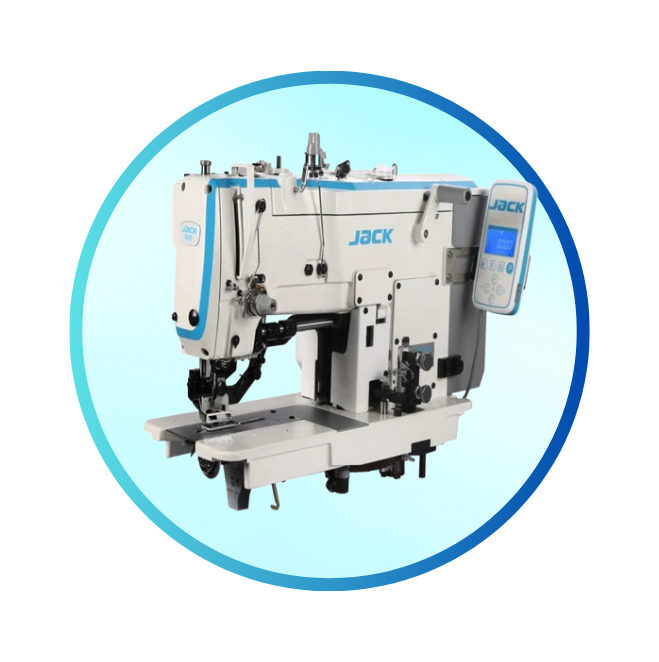

Jack T781G-Z Mechanical Computerized Buttonhole Machine
Comes with complete tabling, legs, and a built-in direct drive motor.
Mechanical buttonhole machine driven by an integrated single-shaft motor has low vibration, low noise, high efficiency, and excellent sewing quality.
Automatic thread trimmer and foot lifter are controlled by a stepper motor to improve efficiency and reduce labor.
New panel with automatic piece counter function. Suitable for sewing buttonholes on various fabrics—shirts, overalls, T-shirts.
New Line
With an integrated control box and motor, it allows easier transport and quick machine installation.
Step Motor
The cutting and lifting of the foot are controlled by a low-vibration, low-noise stepping motor that promises high production performance with great energy savings.
Quick Response, Low Noise
We have added a double check on the operation of the motor to make it faster and more precise: first it slows down and then stops, keeping the noise below 83 decibels at 3600 rpm.
For Knitwear (K)
The rounded plate is dedicated to stretch fabrics and knitwear. The arched foot reduces the possibility of thread breakage. Suitable for swimwear and stretch fabrics with ribbing.
Short Thread 3mm (X)
It does not require a second manual cut, allowing you to save time and money by increasing productivity. (Optional)
End Bobbin Thread Sensor (F13)
The panel warns you when the lower thread is about to run out and allows you to change it in time. Air is also needed to keep the sensor clean.
Advanced LCD Display
More functions just a click away—easy and intuitive thanks to the large icons on the keys and display. No need to read the manual.
Broken Thread Sensor
The alarm warns you when the thread breaks, and the machine stops automatically to prevent damage to the work. This function can be deactivated from the panel.
Automatic Counter
It keeps track of the buttonholes made and notifies you when you have reached the target you have set.
